Browan LoRaWAN Outdoor Micro Gateway

Product Order Number:
Act- BrowanOMG

Enquiry
Categories: ,

Description

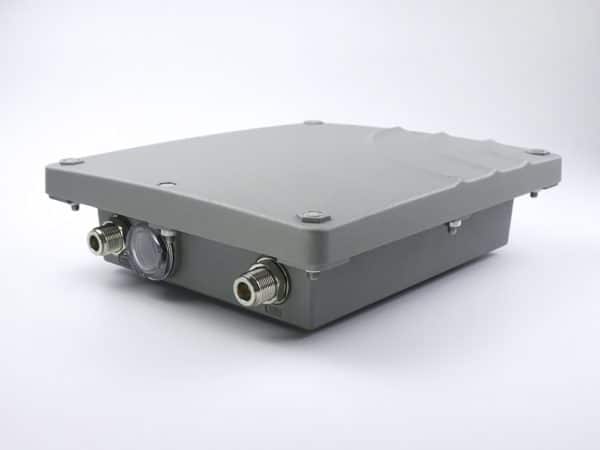

The Browan Outdoor Micro Gateway for Actility is specifically designed for wide area sensor applications using LoRaWAN. Applications include automatic meter reading, monitoring fault indicators, smart faring solutions, and remote sensor monitoring in many sectors. Typical deployment is using star network configuration similar to mobile network base station. This product can be configured as a last-mile repeater to solve sensor connectivity issues when a sensor is located at the edge of coverage. The Browan Outdoor Micro Gateway is also certified as an AWS Qualified Device for IoT.

Key Features

  • Frequency bands              AS923 Mhz (option for AU915)
  • Number of Channels       Up to 16 channels
  • Receive Sensitivity           Down to -142 dBm
  • Operating Temperature -40ºC ~ 60ºC
  • Power Voltage   55VDC/0.6A via PoE adapter
  • Antenna Type    External N-Type antenna
  • Ingress Protection            IP67
  • Interfaces
  • 1 WAN RJ45 10/100Mbps
  • 2 LoRa antenna connectors
  • 1 GPS antenna connector
  • 1 3G/4G antenna (optional)
  • 1 SIM card slot (optional)
  • Dimensions         L:230 x W:200 x H:68 mm
  • Weight                  2.05 kg
  • Security                AES 128
  • Type Approval   FCC/CE/NCC/TELEC/RCM

Product Order Number:

Act- BrowanOMG

Data Sheet

DM_Outdoor Micro Gateway
